Architecture
The layers of the Lego-RL framework, one page each
Lego-RL is a pipeline from a sandboxed coding task to a weight update. Requests flow down the stack (agent → proxy → load balancer → inference servers) and data + weights flow back up (rollouts → buffer → trainer → weight sync). Each layer below has its own page.
The layers
| Layer | Role |
|---|---|
| Environment | Sandboxed execution + verifier; the coding-agent scaffolds and the backends (K8s / Docker, plus Harbor-inherited ones) that run them |
| AgentLoopWorkers | Run the scaffolds concurrently, one trial each, and capture the rollout |
| In-Process Proxy | One unified OpenAI/Anthropic API in front of the policy; captures token-level trajectories |
| Global Load Balancer | Spreads requests across inference replicas with sticky, per-session routing |
| Session-Level Scheduler | Opt-in admission control that protects the prefix cache when KV pressure is high |
| Rollouter | The vLLM inference-server pool, the rollout data buffer, and weight sync |
| Trainer | verl actor on FSDP / VeOmni / Megatron; PPO / GRPO / GSPO; sync, async, partial rollout, R3 |

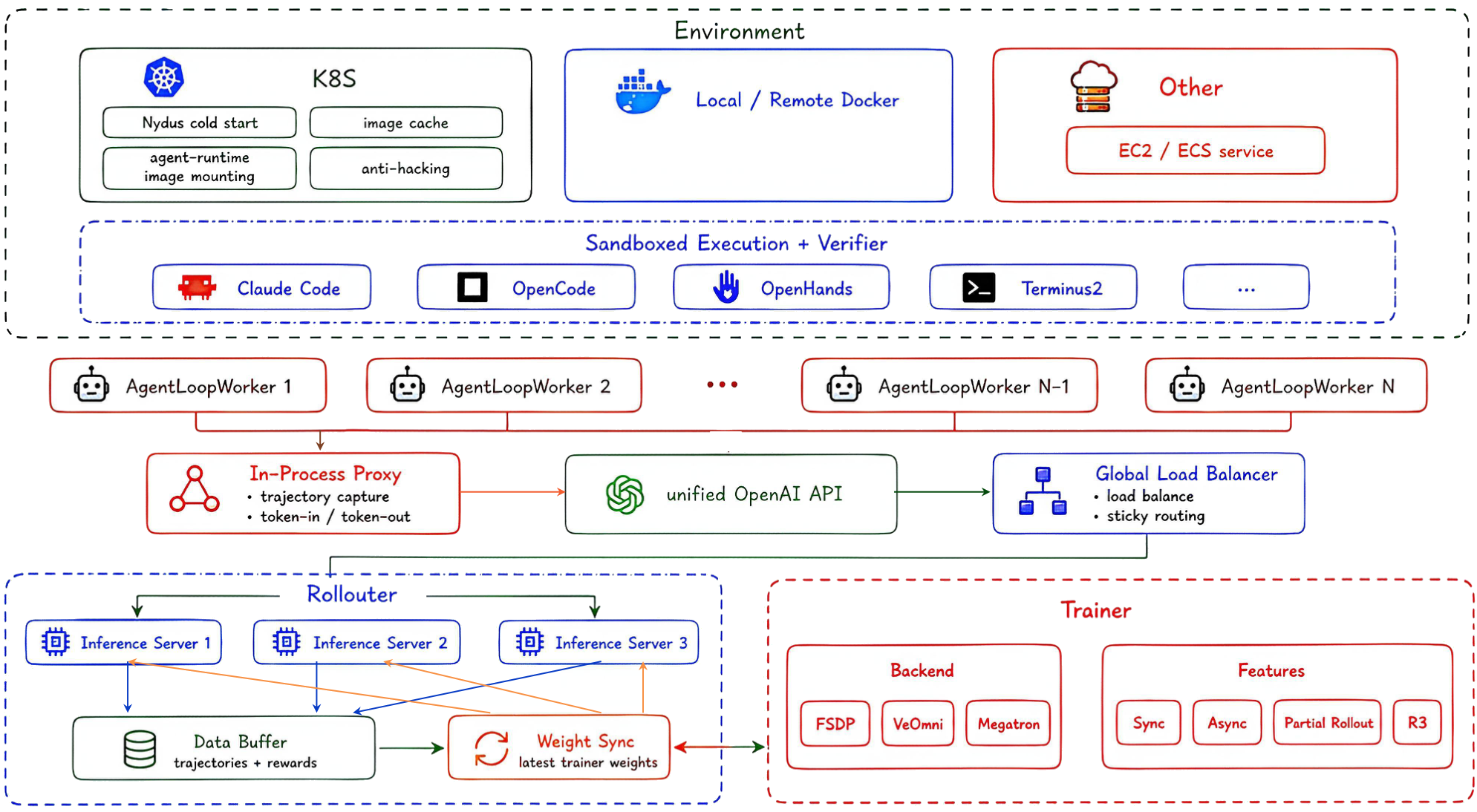

The diagram labels two rows differently from this table: Agent Worker is the
AgentLoopWorkers layer, and Rollout Engine is the Rollouter. The page titles
follow the class names in the code (AgentLoopWorker), the diagram follows the
technical report.
Pillar mapping
The technical report groups the system by the problem each part solves; this page groups it by where the data goes. Two cuts through the same system:
| Pillar | Lives in |
|---|---|
| Token-faithful rollouts | In-Process Proxy for capture, plus R3 routing replay in the Trainer |
| Trustworthy sandboxes at scale | Environment and the AgentLoopWorkers driving it |
| Operations for long runs | nowhere on this diagram |
The third pillar has no box because no data flows through it. Run validation, the dashboard, and the failure-signature write-ups sit beside the pipeline: Agent Plugin, Preflight, Dashboard, Failure Playbook.
One training step
- The trainer samples a batch of tasks and hands them to the AgentLoopWorkers.
- Each worker launches a scaffold inside an Environment sandbox and drives it through the task; every model call goes through the In-Process Proxy.
- The proxy routes the call through the Global Load Balancer to a vLLM replica in the Rollouter, and records the exact tokens for training.
- When the trial finishes, the verifier scores it; the completed rollout lands in the Data Buffer.
- The Trainer consumes the buffer, computes advantages, updates the actor, and pushes new weights back to the rollouter via Weight Sync, then the next step begins.
